Vernier Caliper Calibration: A Complete Guide for Accurate, Audit-Ready Measurement

The vernier caliper is one of the most relied-upon dimensional instruments on any shop floor or laboratory bench. It is affordable, robust, and precise — which is exactly why a caliper that has drifted out of tolerance is so dangerous. Unlike an obviously broken tool, a misreading caliper looks perfectly fine while quietly producing wrong numbers that flow into inspection reports, batch records, and certificates.

Vernier caliper calibration is the discipline that keeps those readings trustworthy. Done properly, it does more than check a number: it establishes traceability to national standards, quantifies measurement uncertainty, and produces the documented evidence that auditors, customers, and regulators expect. This guide walks through what the process involves, the standards that govern it, the tolerances that apply, and how modern calibration software turns a manual chore into an audit-ready workflow.

The Problem: When “Close Enough” Quietly Fails

Even a high-quality caliper degrades. Jaw wear, damaged measuring faces, zero (datum) drift, dropped instruments, and thermal expansion all shift readings by tens of microns — enough to matter in precision work. The real cost is retrospective:

• A single out-of-tolerance caliper can cast doubt on every measurement taken since its last known-good check.
• Suspect measurements trigger rework, scrap, product holds, and, in regulated sectors, recalls.
• Missing or unclear calibration records are among the most common findings in ISO/IEC 17025 and NABL assessments.

In short, uncontrolled measuring equipment converts a small hardware issue into a large quality, compliance, and financial problem.

Industry Challenges

Laboratories and manufacturers repeatedly run into the same friction points:

• Spreadsheet-based records that are easy to overwrite, hard to audit, and impossible to trend.
• Missed due dates because recalibration reminders live in someone’s memory rather than a system.
• Manual uncertainty budgets calculated by hand — slow and a frequent source of arithmetic error.
• Confusion over decision rules — deciding pass/fail without accounting for measurement uncertainty.
• Traceability gaps when reference-standard certificates expire or cannot be located during an audit.

What Is Vernier Caliper Calibration?

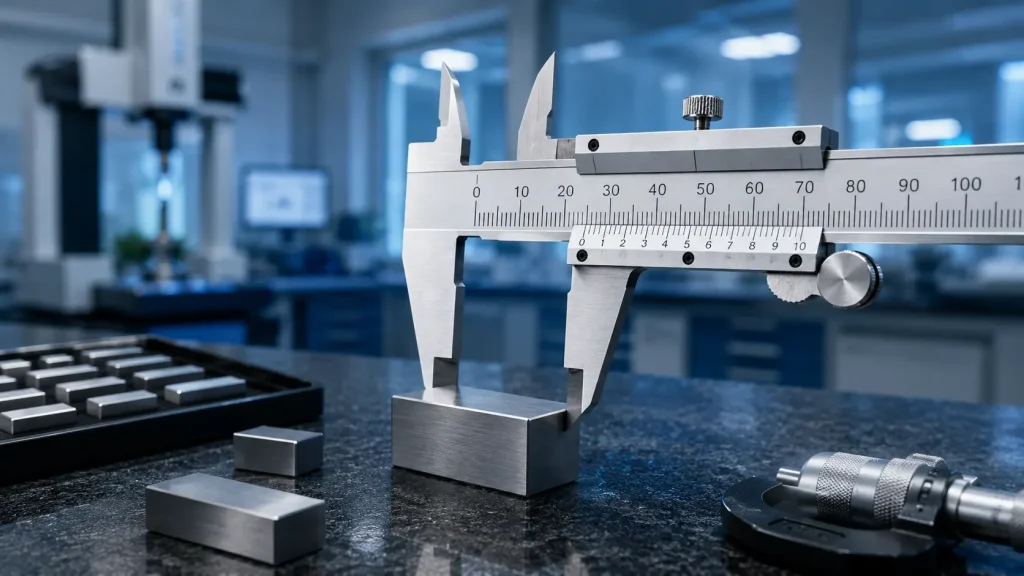

At its core, vernier caliper calibration compares the instrument’s indication against a reference of known value and higher accuracy, then records the error and the uncertainty of that comparison. The reference of choice for length is a set of gauge blocks whose values are traceable through an unbroken chain to national and international standards.

A complete calibration checks the caliper across all the ways it is actually used:

• Zero / datum check — jaws fully closed should read zero.
• External (outside) measurement — measured at several gauge-block lengths spanning the range.
• Internal (inside) measurement — using the inside jaws against ring or block references.
• Depth and step measurement — verifying the depth rod where fitted.
• Parallelism and flatness of the measuring faces, plus repeatability of repeated readings.

Which standards apply

Vernier caliper calibration is governed by a small, well-established family of standards:

• ISO 13385-1:2019 — the international specification for the design and metrological characteristics of calipers (vernier, dial, and digital).
• DIN 862 — the widely referenced European requirements-and-testing standard; it defines permissible errors, such as ±0.02 mm for verniers up to 100 mm, with increased tolerances for inside and depth measurements.
• ASME B89.1.14 — the US specification and calibration standard for calipers.
• ISO/IEC 17025 — the overarching competence standard for calibration laboratories, covering traceability, uncertainty, and decision rules.

The step-by-step procedure at a glance

Stabilize and clean — allow the caliper and gauge blocks to reach the 20 °C reference temperature; wipe measuring faces clean.

Zero the instrument and confirm the datum reading.

Measure external error at multiple gauge-block lengths across the full range (five or more points is typical).

Check inside jaws, depth rod, and step against suitable references.

Assess parallelism, flatness, and repeatability of the faces.

Compute error, correction, and uncertainty — combine Type A (repeatability) and Type B (gauge-block, resolution, temperature) contributions and expand at k=2.

Apply the decision rule and issue the certificate with a clear pass/fail statement where required.

Benefits and Business Impact

A disciplined calibration program pays back well beyond compliance:

• Measurement accuracy you can defend — every reading is backed by traceable evidence.
• Lower scrap and rework — drift is caught before it corrupts production.
• Audit readiness — records, certificates, and histories are available on demand.
• Customer confidence — conformity statements stand up to scrutiny.
• Less downtime — scheduled recalibration replaces emergency firefighting.

Compliance & Regulatory Considerations

The standards below frame how vernier caliper calibration must be planned, performed, and reported:

Industry Best Practices

• Set risk-based intervals — base recalibration frequency on usage, environment, and criticality, not just a fixed 12 months.
• Control the environment — calibrate near 20 °C and let items thermally stabilize; apply temperature corrections for precise work.
• Take multiple readings and average them; read perpendicular to the scale to avoid parallax error.
• Use accredited reference standards with current, traceable certificates.
• Document the decision rule so that pass/fail statements account for measurement uncertainty.
• Digitize records — replace spreadsheets with a controlled system that timestamps and locks entries.

The Role of Digital Transformation, AI, and IoT

Calibration is rapidly moving from paper and spreadsheets to connected, intelligent platforms. Four shifts stand out:

• Automation — scheduling, due-date reminders, and certificate generation remove manual bottlenecks and missed dates.
• Automated uncertainty — software performs Type A and Type B calculations from reading tables, eliminating manual errors.
• IoT monitoring — connected sensors capture temperature and humidity during calibration and automatically feed the data into the record.
• AI insight — anomaly and trend detection flags drifting instruments early and helps optimize calibration intervals.

How Zeptac Helps

Zeptac’s CalTac- calibration management software is built for exactly this workflow. It maintains complete instrument masters and calibration histories, automatically performs Type A and Type B uncertainty calculations from reading tables, and generates professional, digitally signed calibration certificates in a few clicks.

For dimensional instruments like vernier calipers, that means:

• Traceable records linking each caliper to its reference standards and their certificates.
• Automated due-date reminders so no instrument slips past its interval.
• Built-in ISO/IEC 17025 and NABL quality documentation — risk registers, non-conformance registers, audit scheduling, and management-review support.
• InstaCertify for instant, digitally signed calibration and testing certificates, with reference-instrument calibration reminders.

Real-World Use Cases

Future Trends

• Digital Calibration Certificates (DCC) — machine-readable, tamper-evident certificates replacing PDFs and paper.
• AI-optimised intervals — recalibration frequency tuned to each instrument’s real drift history.
• Connected metrology — IoT-linked instruments and environmental sensors logging data automatically.
• Cloud, audit-ready platforms — a single source of truth accessible across sites and assessors.

Conclusion

Vernier caliper calibration is not a formality — it is the foundation of trustworthy dimensional measurement. By calibrating against traceable gauge blocks, working within recognized tolerances such as DIN 862, quantifying uncertainty, and documenting a clear decision rule, laboratories and manufacturers protect product quality, accreditation, and reputation in a single step. The organizations that pull ahead are those that stop treating calibration as paperwork and start running it as a connected, automated, audit-ready process.

Frequently Asked Questions for Vernier Caliper Calibration

Q1. What is vernier caliper calibration?

It is the documented comparison of a vernier caliper’s readings against traceable reference standards (usually gauge blocks) to determine its measurement error and uncertainty, confirm it is within permissible tolerances, and issue a calibration certificate.

Q2. How often should a vernier caliper be calibrated?

A 12-month interval is common, but best practice is to set a risk-based interval based on how often and how critically the caliper is used. Heavily used or high-precision instruments may need calibration every 3–6 months.

Q3. Which standards apply to vernier caliper calibration?

Key references are ISO 13385-1:2019 (design and metrological characteristics), DIN 862 and ASME B89.1.14 (tolerances and testing), and ISO/IEC 17025 for laboratory competence, traceability, and decision rules.

Q4. What is the acceptable tolerance for a vernier caliper?

It depends on the governing standard and range. DIN 862, for example, specifies ±0.02 mm for verniers up to 100 mm, with larger allowances for inside and depth measurements. Always confirm against the manufacturer’s stated standard.

Q5. What reference standards are used to calibrate a caliper?

Gauge blocks (per ISO 3650) of an appropriate grade are the primary length standards, supported by ring or setting standards for inside measurements. Their certificates must be current and traceable.

Q6. Can I calibrate a vernier caliper in-house?

Yes, if you have traceable reference standards, a controlled environment, competent personnel, and a documented procedure. For accredited certificates or high-precision work, an ISO 17025-accredited laboratory is recommended.

Q7. How does calibration software help?

It automates scheduling and reminders, performs Type A and Type B uncertainty calculations, generates digitally signed certificates, and maintains locked, timestamped audit trails — cutting effort while keeping you audit-ready.
