Electrotechnical Calibration: A Complete, Standards-Based Guide

A multimeter that reads 0.4% low will still show you a clean, confident number. That is what makes electrical measurement error so expensive: nothing looks wrong until a batch fails, an audit opens a finding, or a safety test passes something it should have rejected. Electrotechnical calibration is the discipline that closes that gap — comparing voltage, current, resistance, frequency, and power instruments against traceable references, and stating how much you can trust the result.

This guide covers the method professional laboratories actually follow, the standards behind it, and the decisions that make a certificate defensible rather than decorative.

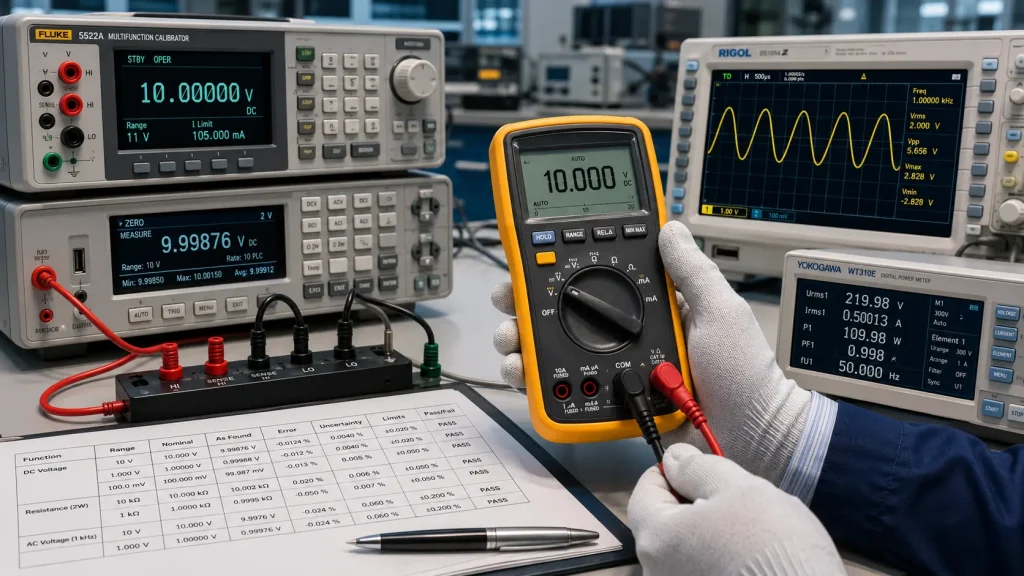

Electrotechnical Calibration: A Complete, Standards-Based Guide

Calibration Is Not Adjustment

The two get used interchangeably, and the confusion causes real problems. Under the international vocabulary of metrology, calibration establishes the relationship between an instrument’s indication and a reference value, with its associated uncertainty. Adjustment is a separate operation that changes the instrument so it reads closer to correct.

Why it matters: if a technician adjusts an instrument before recording what it read on arrival, the as-found data is destroyed. Nobody can then answer the question every auditor asks — whether the measurements this instrument produced last quarter were valid. A proper calibration records the as-found condition first, adjusts only if needed and agreed upon, and then recalibrates to capture the as-left condition.

Where Electrotechnical Calibration Goes Wrong

The failures are consistent across laboratories:

• Inadequate reference standards — using a calibrator barely better than the unit under test, leaving no room for a meaningful pass/fail decision.
• No stabilization — connecting an instrument that has just come off a cold van and calibrating it immediately.
• Missing as-found data — adjusting first, recording second, destroying the audit trail.
• Conformity statements with no decision rule — writing “PASS” on a certificate without defining how uncertainty was handled near the tolerance limit.
• Uncontrolled environment — thermal EMFs, humidity, and electromagnetic interference shifting low-level DC and high-resistance measurements.
• Spreadsheet uncertainty budgets — fragile, unversioned, and rarely reviewed.

How Electrotechnical Calibration Is Performed

For digital multimeters, the reference method is EURAMET Calibration Guide cg-15, which most accredited laboratories in Europe, the Americas, and Asia follow. It grades the work by the instrument’s resolution — a 3½-digit handheld meter and a 6½-digit bench DMM need very different numbers of calibration points and uncertainty levels.

The working sequence looks like this:

1. Thermal stabilisation. Power the instrument and leave it in the laboratory environment — cg-15 examples use 24 hours before any measurement on high-resolution instruments.
2. Functional self-test and self-calibration. Run the manufacturer’s self-verification and any internal autocal routine, and record the outcome.
3. Initial (“as-found”) calibration. Measure at the defined points across each function before touching anything.
4. Adjustment, if required and authorized. Follow the manufacturer’s documented method — and only with the customer’s agreement.
5. Final (“as-left”) calibration. Repeat the measurements to establish the condition the instrument leaves in.

Typical functions covered include DC voltage, AC voltage, DC current, AC current, and resistance, with frequency, capacitance, and power added for instruments with wider capability. Reference conditions in CG-15’s worked examples are 23 ± 1 °C and 50 ± 10 % relative humidity. DC voltage and resistance points are taken after short-circuiting the input and zeroing each range; current ranges are zeroed with the circuit open.

Reference Standards, Traceability, and TUR

A calibration is only meaningful if the reference is materially better than the instrument being tested. The common benchmark is the test uncertainty ratio (TUR) — the ratio of the tolerance being verified to the measurement’s expanded uncertainty. A TUR of 4:1 or better is widely treated as the point at which simple pass/fail decisions are considered sound; many laboratory policies state that TUR should exceed 4:1 wherever attainable and never fall below 1:1.

Traceability then links that reference upward through an unbroken chain of calibrations to national metrology institutes — NPL India, NIST, NPL UK, PTB — each step carrying its own stated uncertainty. Accreditation to ISO/IEC 17025 by a body signatory to the ILAC Mutual Recognition Arrangement is what makes that chain recognized across borders.

Decision Rules: The Part Most Certificates Get Wrong

Here is the problem a conformity statement has to solve. An instrument’s reading sits right at the tolerance limit. Its measurement carries uncertainty. So the true value could be inside the limit or outside it — and “PASS” alone is not a defensible answer.

ISO/IEC 17025:2017 addresses this directly. Clause 7.1.3 requires the laboratory to agree and document the decision rule with the customer before work begins whenever statements of conformity will be issued, and clause 7.8.6 requires the report to identify the decision rule applied. ILAC G8:09/2019 provides the framework.

Two approaches dominate:

• Simple acceptance (shared risk). The acceptance limit equals the tolerance limit. Straightforward, and generally used where TUR is 4:1 or better.
• Guard banding. The acceptance limit is pulled inside the tolerance by a guard band derived from the expanded uncertainty, reducing the probability of falsely accepting a nonconforming instrument.

Safety: Measurement Categories Under IEC 61010

Electrotechnical work involves live circuits, and the relevant safety classification is the CAT rating defined in the IEC 61010 series. A CAT rating describes the transient overvoltage an instrument can survive at a given point in an installation — not simply the voltage it can display.

The distinction is not cosmetic. A CAT III 600 V meter must withstand a 6 kV impulse, and a CAT IV 600 V meter an 8 kV impulse, both tested through a low source impedance that simulates a genuine high-energy fault. A meter with a higher displayed voltage rating but a lower category is not the safer instrument. Match the category to the working environment, and check that leads and probes carry the same rating as the meter.

Compliance and Certificate Content

For accredited laboratories, ISO/IEC 17025 governs competence, traceability, and reporting; in India, NABL operates the accreditation scheme. A defensible electrotechnical calibration certificate should carry:

• Instrument identification, model, and serial number
• Reference standards used and their traceability
• Environmental conditions during calibration
• As-found and as-left results at each point
• Expanded measurement uncertainty and coverage factor
• The decision rule, where a conformity statement is given
• Calibration date, and recommended due date where requested

Best Practices Worth Enforcing

A few habits separate a controlled electrotechnical calibration program from a reactive one:

• Set intervals from evidence — drift history, usage, and measurement risk — rather than a default twelve months.
• Keep low-level DC and high-resistance work in a thermally stable area and allow connections to settle before reading.
• Use the same technician-independent procedure every time; document it and version-control it.
• Review out-of-tolerance results formally, and assess the impact on measurements made since the last calibration.
• Participate in proficiency testing or interlaboratory comparisons to validate capability.

Digital Transformation, AI, and IoT

Two things break manual electrotechnical calibration at scale: the uncertainty arithmetic and the records. Modern platforms address both. Automated systems drive the calibrator and capture readings directly, removing transcription error. Software applies the uncertainty budget and the agreed decision rule identically on every certificate. IoT-connected environmental sensors log temperature and humidity against each calibration event, and analytics on accumulated drift data support condition-based intervals instead of fixed calendar ones — flagging an instrument trending toward its limit before it fails.

How Zeptac Helps

Zeptac’s CalTac calibration management software includes a dedicated Electrotechnical Labs module built for this discipline. It automates uncertainty calculation for electrotechnical instruments, generates ISO/IEC 17025- and NABL-ready calibration certificates instantly, and maintains full instrument and reference-standard histories so traceability is always demonstrable. Internal audit tools mapped to ISO 17025 clauses, NABL quality-document control, and master-document revision control keep the laboratory inspection-ready, while Zeptac’s IoT integration captures environmental and instrument data in real time.

In practice:

• A third-party calibration laboratory issues DMM and clamp-meter certificates with automated uncertainty estimates and a consistently documented decision rule, sharply reducing turnaround time.
• A manufacturer tracks the calibration status of hundreds of test instruments across plants and stops production use of any overdue instruments.
• A quality team in a testing laboratory pulls complete as-found/as-left history for a specific instrument during an audit in seconds rather than hours.

Where This Is Heading

Expect automated and remote calibration to widen, cloud records that assessors can review without a site visit, and predictive scheduling driven by drift analytics. Growth in EV, renewable, and power-electronics testing is also pushing demand for higher-voltage and higher-frequency electrotechnical calibration capability.

Conclusion

Good electrotechnical calibration comes down to four disciplines: separate calibration from adjustment and record as-found data first; use references with an adequate TUR; state the uncertainty and the decision rule behind every conformity statement; and keep the environment and records under control. Software that automates the arithmetic and the documentation turns a manual, error-prone process into one that holds up under any audit.
